Electric venting skylight FVE - FAKRO

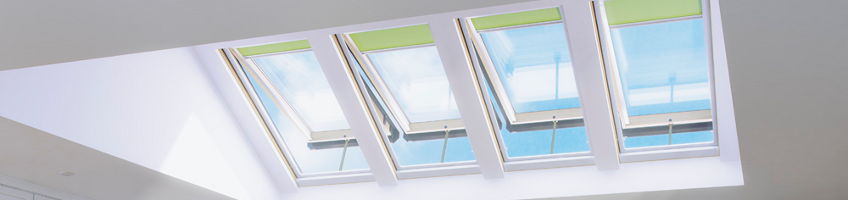

Electric Venting Skylight FVE

Fakro FVE electric venting skylight provides satisfaction you may have been looking for. FVE skylight not only provides daylight into your home, but also provides the circulation of fresh air. Equiped with rain sensors, your skylight will automatically close even with the slightest hint of rain. This feature will avoid any concerns of unexpected surprises of rain. The flywire screen comes standard, hence will prevent univited pests such as insects entering your homes.

Features:

  • Made from pressure treated pine timber
  • Double coated clear acrylic laquer will protect the timber, hence no additional painting required.
  • Easy and quick installation, as our new system has no brackets
  • Suitable for roof pitches between 15-60 degrees
  • Triple seal system
  • Installation template provides accurate cutting of roof cavity
  • Intergrated remote control system
  • Fitted directly on the roof for superior insulation





  • FVE G3


    • single chamber Solar Factor glazing unit 4HT – Tg16Ar – 4H
    • Highest quality pine woodbeautiful, hand selected, vacuum treated, lacquered timber frames
    • Wood painted twice with ecological acrylic lacquerdouble coated wood with ecological acrylic lacquer in natural colour
    • suitable for roof pitches 15-85°suitable for roof pitches between 15-85°
    FV G3
    • 0.18 (1.0) [BTU/h ft2F] (W/m2K) glazing U-value 0.44 (2.50) [BTU/h ft2F] (W/m2K) U-Factor (skylight) 0.21 Solar Heat Gain Coefficient (SHGC) 0.04 [cfm/ft2] @ 1.57 psf, tested size: 24x70 Air Leakage [cfm/ft2] 0.41 Visible Transmittance (VT) 54 Condensation Resistance 730 [Pa] Water Penetration Resistance/Test Pressure 3040/2400 [Pa], tested size: 27x70 Design Pressure (positive/negative)
  • FVE G31


    • single chamber Solar Factor glazing unit 4HT – Tg16Ar – 4H
    • Highest quality pine woodbeautiful, hand selected, vacuum treated, lacquered timber frames
    • Wood painted twice with ecological acrylic lacquerdouble coated wood with ecological acrylic lacquer in natural colour
    • suitable for roof pitches 15-85°suitable for roof pitches between 15-85°
    FV G3
    • 0.19 (1.0) [BTU/h ft2F] (W/m2K) glazing U-value 0.44 (2.50) [BTU/h ft2F] (W/m2K) U-Factor (skylight) 0.21 Solar Heat Gain Coefficient (SHGC) 0.04 [cfm/ft2] @ 1.57 psf, tested size: 24x70 Air Leakage [cfm/ft2] 0.39 Visible Transmittance (VT) 53 Condensation Resistance 730 [Pa] Water Penetration Resistance/Test Pressure 3040/2400 [Pa], tested size: 27x70 Design Pressure (positive/negative)
